Plug Valves
Design Features
- Bi-dirctional inline bubble tight seal independent of line pressure.
- Full lip at port openings protects PTFE sleeve.
- Drilled and tapped flange mounting pads independent of cover and top seal assembly.
- Other drilling option available.
| DESIGN | API 599 |
|---|---|
| END CONNECTION | FLANGED END ASME B 16.5 |
| FACE TO FACE | ASME 16.10 |
| TESTING STANDARDS | API 598 |
| MATERIAL OPTIONS | CI / WCB / CF 8 / CF 8M / CF3 / CF 3M / CN 7M |
| OPERATION | LEVER/GEAR OPERATED |

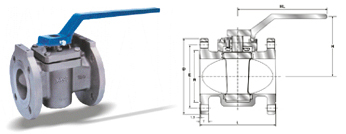

| CLASS 150 | CLASS 300 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | L | D | R | E | T | H | SIZE | L | D | R | E | T | H |
| 15 | 108.0 | 88.9 | 35.0 | 60.5 | 9.5 | 86 | 15 | 139.7 | 95.30 | 35 | 66.8 | 14 | 86 |
| 20 | 117.5 | 98.5 | 42.9 | 69.9 | 9.5 | 86 | 20 | 152.4 | 117.6 | 42.7 | 82.6 | 16 | 86 |
| 25 | 127 | 108.0 | 50.8 | 79.5 | 11.2 | 114 | 25 | 165.1 | 124 | 50.8 | 88.9 | 17.5 | 124 |
| 40 | 165.1 | 127.0 | 73.2 | 98.6 | 14.2 | 135 | 40 | 190.5 | 195.7 | 73.2 | 114.3 | 20.6 | 135 |
| 50 | 177.8 | 152.4 | 92.0 | 120.7 | 16.0 | 159 | 50 | 215.9 | 165.1 | 92 | 127 | 22.4 | 169 |
| 65 | 203.2 | 190.5 | 104.6 | 139.7 | 19.0 | 167 | 65 | 282.7 | 209.6 | 104.6 | 149.4 | 28.7 | 167 |
| 80 | 203.2 | 190.5 | 127.0 | 152.4 | 19.0 | 167 | 80 | 282.7 | 209.6 | 127 | 168.4 | 28.7 | 167 |
| 100 | 228.6 | 228.6 | 157.2 | 190.5 | 23.9 | 194 | 100 | 304.8 | 254 | 157.2 | 200.2 | 31.8 | 191 |
| 150 | 266.7 | 279.4 | 215.9 | 241.3 | 25.4 | 274 | 150 | 403.4 | 317.5 | 215.9 | 270 | 36.6 | 274 |
| 200 | 292.1 | 342.9 | 269.8 | 298.5 | 28.7 | 324 | 200 | 419.1 | 381 | 269.8 | 330.2 | 41.4 | 324 |
| 250 | 330.2 | 406.4 | 323.9 | 362.0 | 30.2 | 373 | 250 | 457.2 | 444.5 | 323.9 | 387.4 | 47.8 | 373 |
| 300 | 355.6 | 482.6 | 381.0 | 431.8 | 31.8 | 417 | 300 | 501.7 | 520.7 | 381 | 450.9 | 50.85 | 417 |
