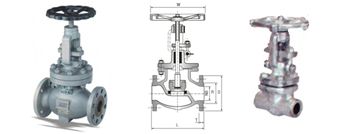

Globe Valves


DESIGN BS-1873
SPECIFICATIONS OUTSIDE SCREW AND YOKE TYPE, RISING SPINDLE &
HAND WHEEL, BOLTED BONNET, SWIVEL DISC
RENEWABLE SEAT RING / INTEGRAL SEATING AND
RENEWABLE / INTEGRAL BACK SEATING ARRANGEMENT.
DIMENSIONS FACE TO FACE ASME B 16.10/BS-2080/DIN 3300
END CONNECTION FLANGE AS PER ASME B 16.5 / SCREWED END & BUTT WELD
TESTING STANDARDS BS-5146/API 598
MATERIAL OPTIONS (A) ASTM A 216 GR. WCB, ASTM A 351 GR. CF 8/CF 8M/CF 8C/CF3/ CF3M / ALLOY - 20 / HASTALLOY B & C.
(B) C.I. TO I.S. 210 G.R. 20.
(C) ALLOY STEEL TO ASTM A 217 C5, WC6, WC9, WC12.
PRESSURE RATING 150/300/600/900/1500/2500 CLASS
ASA 150 ASA 300
SIZE L D R T E W SIZE L D R T E W
25 127 108 51 11 79 150 25 203 124 51 17.5 89 210
40 165 127 73 14 98.5 210 40 229 155.5 73 20.5 114 250
50 203 152 92 16 120.5 210 50 267 165 92 22 127 250
65 216 178 105 17.5 140 255 65 292 190.5 105 25 149 405
80 241 190.5 127 19 154 255 80 317.5 209.5 127 28.5 168 405
100 292 229 157 24 190.5 405 100 356 254 157 32 200 490
125 356 254 186 24 216 490 125 375 279 186 35 235 490
150 406 279 216 25 241 490 150 444.5 317.5 216 36.5 270 490
200 485 343 270 28.5 298 610 200 533 381 270 41 330 610
250 622 406 324 30 362 625 250 622 444.5 324 47.5 387 625
300 698 483 381 32 432 675 300 711 521 381 51 451 675
